Electronic speed controller · FD-ESC-4IN1

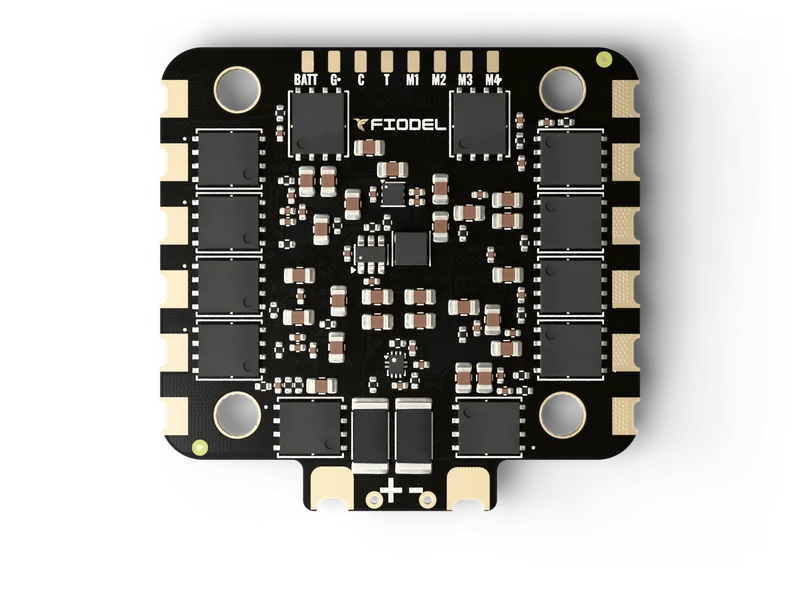

Fiodel 4-in-1 ESC
60 A per motor on 6S: four AM32 controllers, TI gate drivers and 24 Toshiba FETs on eight copper layers.
Pre-order — ships from end of November 2026
- Full refund if you cancel any time before dispatch
- 6-month warranty against manufacturing defects
- GST invoice with every order
- 60 A continuous per motor, 6S
- AM32 firmware, one AT32F421 controller per motor
- TI DRV8300 gate drivers, 24 × Toshiba TPHR8504PL 40 V FETs
- RC snubber on every phase
- Current sensor output for the flight controller, 10 mV/A
- Castellated battery and motor pads, 30.5 mm mounting
Questions before you order? Ask us on WhatsApp

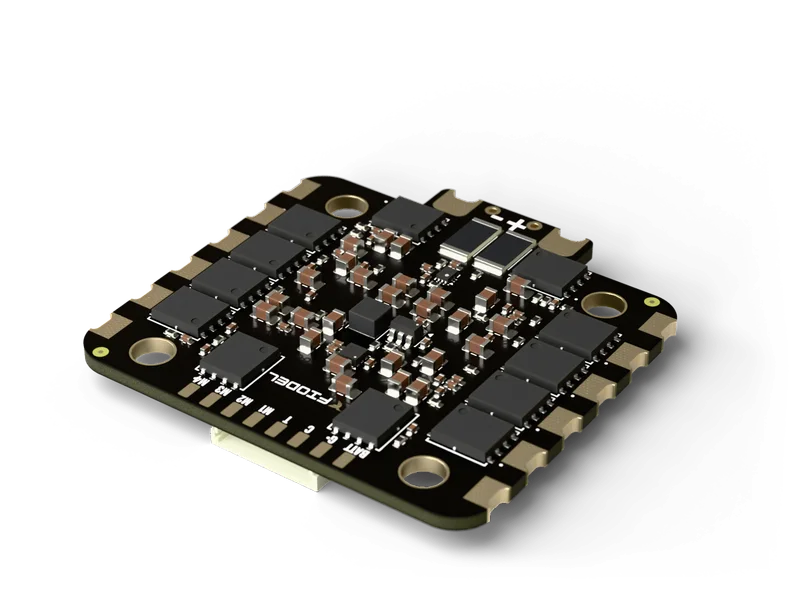

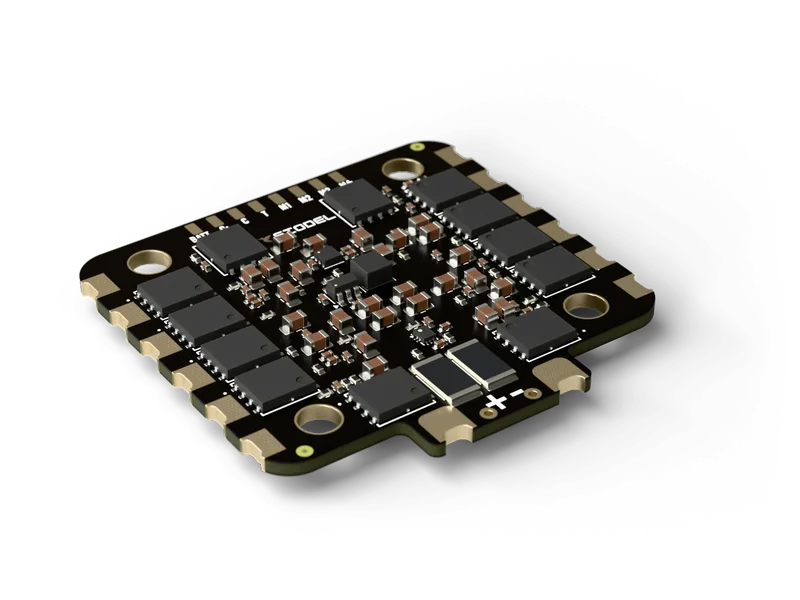

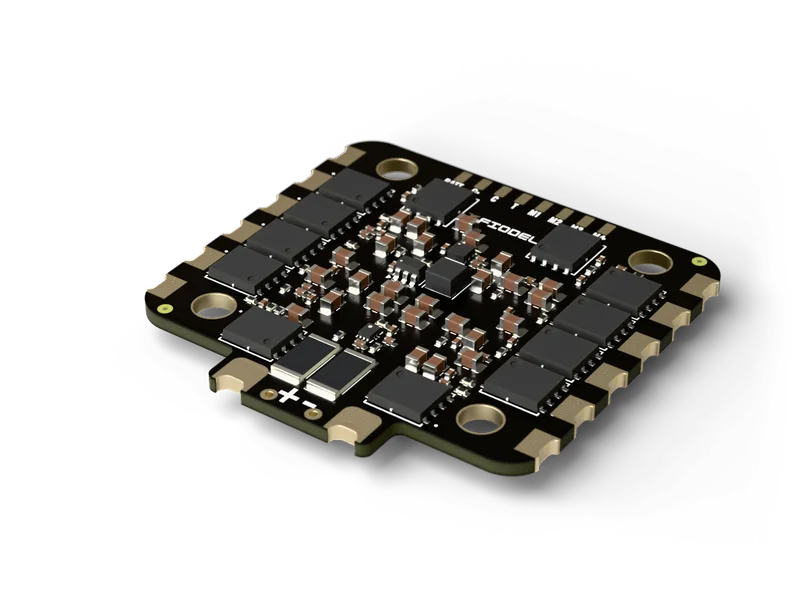

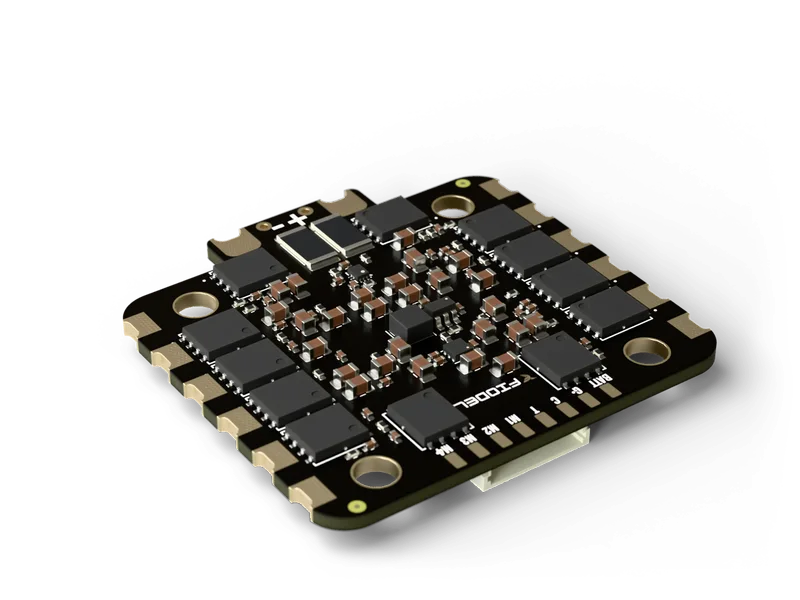

Overview

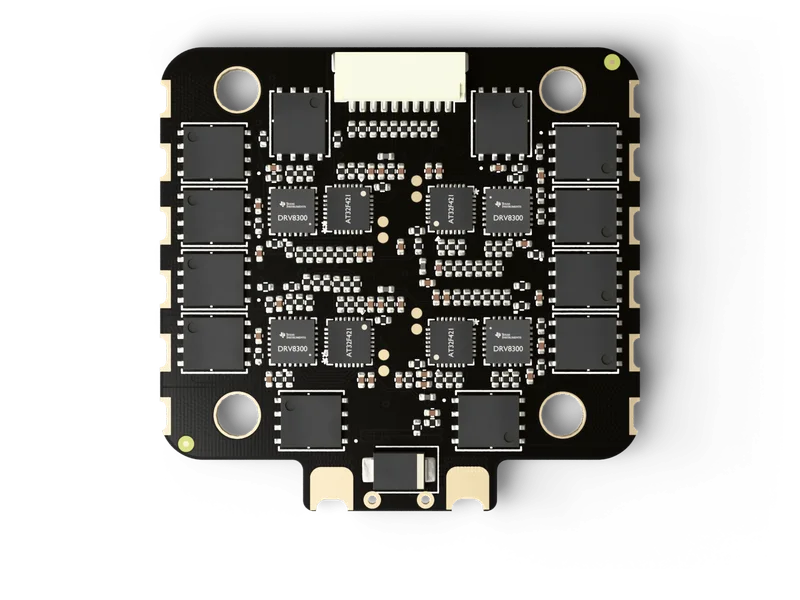

The Fiodel 4-in-1 ESC drives four brushless motors from a 6S pack at 60 A continuous per motor. Each motor channel is a complete controller of its own: an Artery AT32F421 microcontroller running AM32, a Texas Instruments DRV8300 three-phase gate driver and six Toshiba TPHR8504PL MOSFETs.
The power stage is built for clean switching. Every phase has its own RC snubber, every FET bank its own ceramic decoupling, and battery and phase current run on paired copper zones across eight 1 oz layers stitched by via arrays. A TVS diode guards the battery input, and a 470 µF capacitor is supplied to fit at the battery leads.
A TI INA190 amplifier on a 0.1 mΩ shunt reports total current to the flight controller as an analog voltage. Battery and motor wires solder into castellated pads that take solder from both sides. The flight controller connects through a 10-pin JST-SH socket in the Betaflight pinout, or through a matching row of solder pads.
Specifications
Ratings
| Continuous current | 60 A per motor |
|---|---|
| Battery | 6S Li-Po (25.2 V) |
| Firmware | AM32 |
| Throttle signal | DShot, including bidirectional DShot |
| Telemetry | Shared serial telemetry line to the flight controller |
Power stage
| Controllers | 4 × Artery AT32F421G8U7, one per motor |
|---|---|
| Gate drivers | 4 × Texas Instruments DRV8300 three-phase driver |
| MOSFETs | 24 × Toshiba TPHR8504PL — 40 V, 0.85 mΩ maximum on-resistance |
| Snubbers | RC snubber on each of the 12 phases |
| Input protection | SMBJ28CA TVS diode |
| Bulk capacitor | 470 µF 35 V low-ESR, supplied, fitted at the battery leads |
Sensing and supplies
| Current sensor | TI INA190 on a 0.1 mΩ shunt — 10 mV/A analog output |
|---|---|
| Gate supply | 10 V from a TI LMR51430 buck converter |
| Logic supply | 3.3 V LDO |
| BEC output | None — battery voltage is passed to the flight controller |
Board
| Size | 45 × 43.5 mm |
|---|---|
| Mounting | 30.5 × 30.5 mm, four Ø4.0 mm plated and grounded holes for M3 rubber grommets |
| Construction | 8-layer, 1.6 mm, 1 oz copper on every layer, ENIG finish, black solder mask |
| Battery pads | Two castellated pads, solderable top and bottom |
| Motor pads | Twelve castellated pads on the two side edges, solderable top and bottom |
Pinout
J1Flight controllerJST-SH 10-pin, 1.0 mm
Betaflight 10-pin extended ESC pinout.
| Pin | Signal | Detail |
|---|---|---|
| 1, 2 | Battery + out | Powers the flight controller |
| 3, 4 | GND | |
| 5 | Current | Analog, 10 mV/A |
| 6 | Telemetry | |
| 7 | Motor 1 signal | |
| 8 | Motor 2 signal | |
| 9 | Motor 3 signal | |
| 10 | Motor 4 signal |
PadsFlight-controller solder pads8 pads
Same signals as the socket, for direct wiring.
| Pin | Signal | Detail |
|---|---|---|
| BATT | Battery + out | |
| G | GND | |
| C | Current | 10 mV/A |
| M1–M4 | Motor signals 1–4 | |
| T | Telemetry |
PowerBattery and motorsCastellated solder pads
| Pin | Signal | Detail |
|---|---|---|
| Battery + / − | Battery leads | Fit the supplied capacitor across these pads |
| 3 pads per motor | Motor phases A, B, C | Swap any two wires to reverse a motor, or reverse it in AM32 |
Questions
- Which firmware does it run?
- AM32, on all four controllers. Settings are changed through the flight controller with any AM32 configurator.
- Does it work with flight controllers from other brands?
- Yes. The socket follows the Betaflight 10-pin ESC pinout and the same signals are on solder pads.
- Does it power my flight controller?
- It passes battery voltage through the 10-pin cable. Your flight controller needs its own regulators, as the Fiodel F405 has.
- When will it ship?
- This is a pre-order. Shipping starts end of November 2026, in the order pre-orders were placed. You can cancel for a full refund any time before your order is dispatched.
