Flight controller stack · FD-STACK-F405

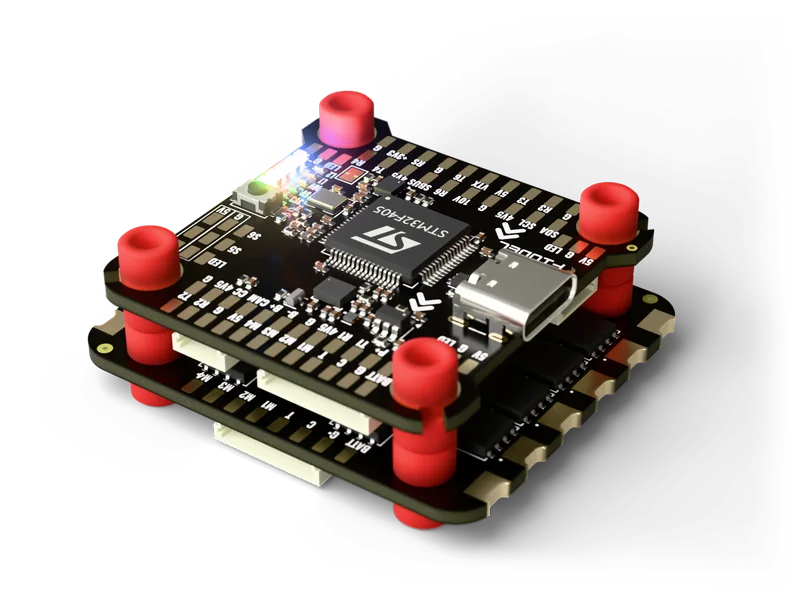

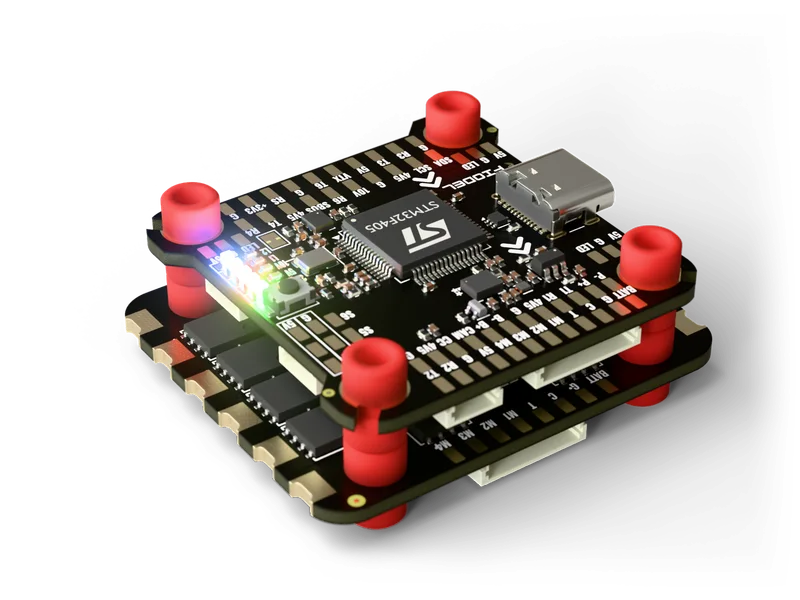

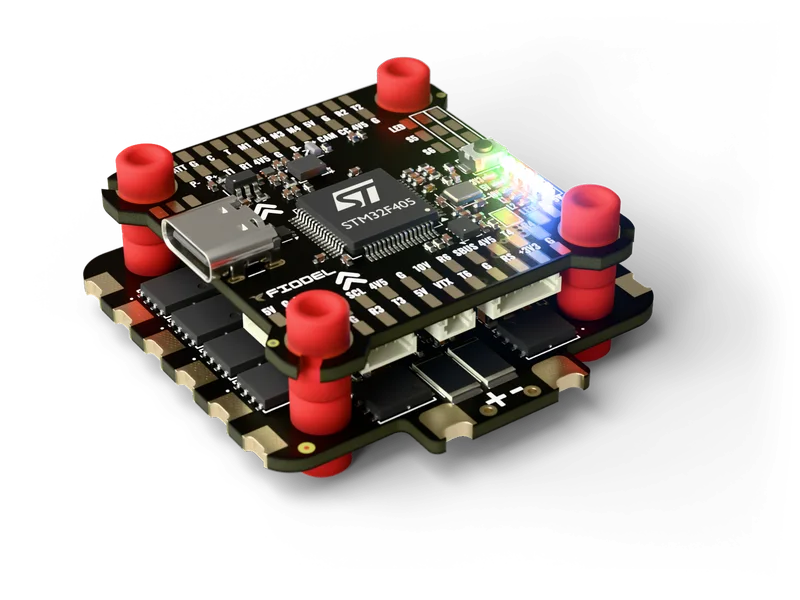

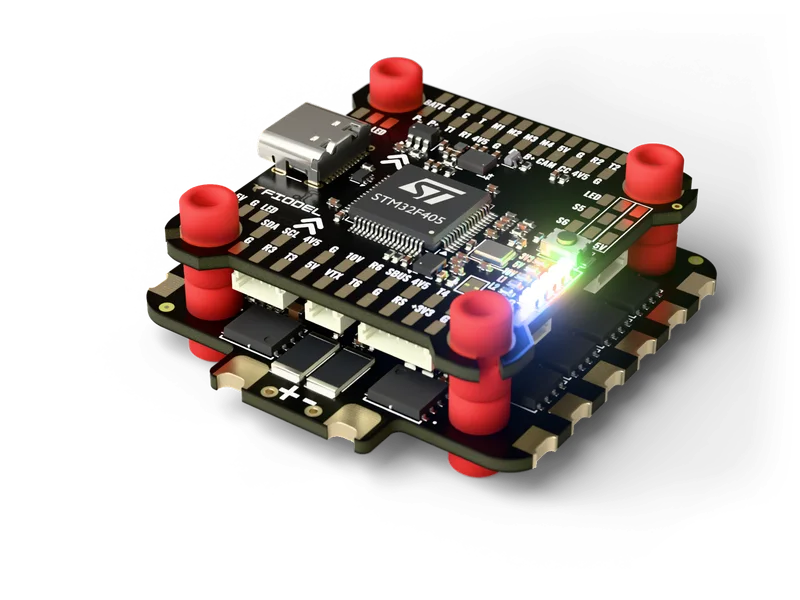

Fiodel F405 + 4-in-1 ESC Stack
The F405 Flight Controller and the 60 A 4-in-1 ESC together, joined by one cable.
Pre-order — ships from end of November 2026
- Full refund if you cancel any time before dispatch
- 6-month warranty against manufacturing defects
- GST invoice with every order
- F405 Flight Controller + 60 A 4-in-1 ESC
- One straight 10-pin cable between the boards
- Betaflight on the flight controller, AM32 on the ESC
- Current sensor matched: 10 mV/A
- 30.5 mm mounting, 6S
Questions before you order? Ask us on WhatsApp
Overview

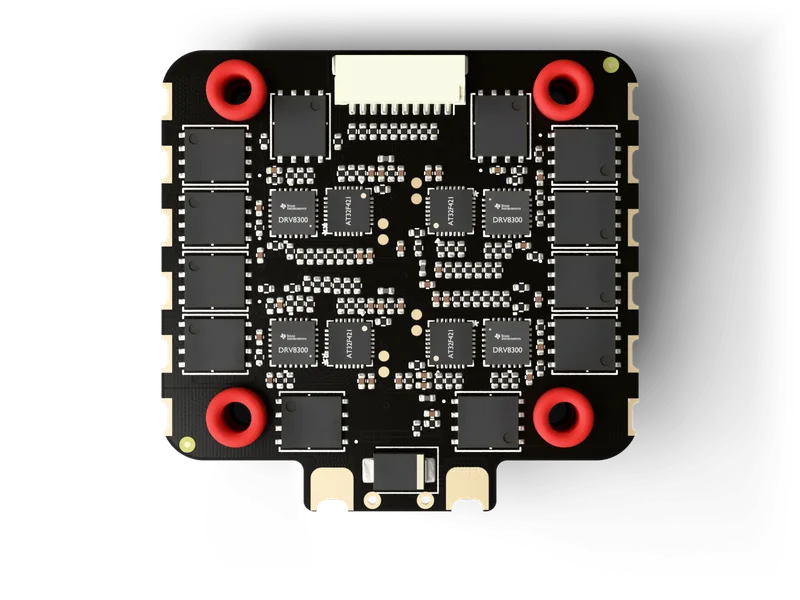

The Fiodel stack pairs the F405 Flight Controller with the 4-in-1 ESC. The two boards were designed together around the same 6S pack: the ESC's 10-pin socket and the flight controller's ESC socket follow the same pinout, so one straight cable carries battery power, four motor signals, telemetry and the current-sensor signal between them.

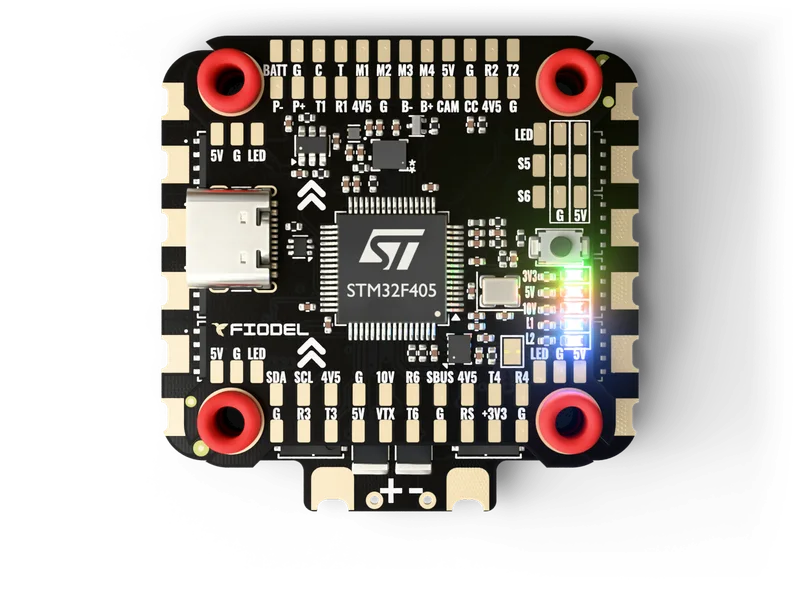

Both boards mount on the same 30.5 × 30.5 mm pattern with plated, grounded holes for M3 rubber grommets. The flight controller reads the ESC's current sensor at 10 mV/A and makes its own 10 V, 5 V and 3.3 V rails from the battery voltage the ESC passes up.
Everything listed for the two boards individually applies here — the full specifications and pinouts are on their own pages.
Specifications
Stack
| Flight controller | Fiodel F405 Flight Controller — STM32F405, ICM-42688-P, DPS368, OSD, 16 MB blackbox |
|---|---|
| ESC | Fiodel 4-in-1 ESC — 60 A continuous per motor, AM32 |
| Battery | 6S Li-Po (25.2 V) |
| Mounting | 30.5 × 30.5 mm, M3 rubber grommets |
| Board sizes | 39 × 39 mm (flight controller), 45 × 43.5 mm (ESC) |
| Interconnect | 60 mm 10-pin JST-SH cable, supplied |
Questions
- Is the stack different from buying the two boards separately?
- The boards are the same. The stack is the pair at a lower price.
- When will it ship?
- This is a pre-order. Shipping starts end of November 2026, in the order pre-orders were placed. You can cancel for a full refund any time before your order is dispatched.
